Customise to standardise

Labels, layers and annotation styles

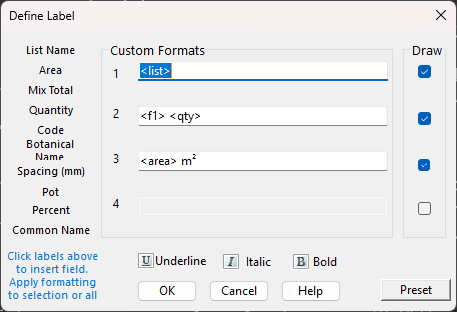

  • Label formats can be customised depending on documentation requirements.

  • Pre-set formats are included along with controls to define custom formats.

  • Each label can be created as a multileader, an associative leader or a simple Mtext label.

  • When label formats are redefined, changes are applied in the drawing.

  • Use your standard annotation styles and layer system for labels to implement consistent office standards.
